TAP driver for Solaris used for OpenVPN

This is a TAP driver for Solaris that can be used for OpenVPN
The code is based on Universal TUN/TAP driver. I made changes somewhat and added some code to it for supporting Ethernet tunneling feature, since Universal TUN/TAP driver for Solaris only supports IP tunneling known as TUN.

Since there has not been TAP driver for Solaris, OpenVPN does not have code for handling a TAP device for Solaris. So I also modified OpenVPN code somewhat, and made it work with this TAP driver.

Also, I wrote bridge moduel for Solaris, so that you can configure Solaris as bridge server.

TAP Driver

Patch for OpenVPN

Bridge Module

tunctl command for Solaris

Tested Solaris Version

Change Log

TAP driver

tuntap.tar.gz (Last Update: 16th Nov 2009)
Source
After extracting tuntap.tar.gz file, run './configure', 'make', and 'make install' as usual.
Both 'tun' and 'tap' driver will be built and installed on your system. You can access these devices through /dev/tun and /dev/tap.

Here, you can get patch against original tun code.
patch.tuntap.tun.c

Patch for OpenVPN

tun.c

OpenVPN Version	Modified file	patch(diff -u ouputs)	Last Update
2.0.7, 2.0.9	tun.c	patch.openvpn-2.0.9.tun.c	20th May 2009
2.1 RC21	tun.c	patch.openvpn-2.1_rc21.tun.c	18th Nov 2009

How to apply
- By replacing file
  Put tun.c on the directory where you extracted source code of OpenVPN, and swap existing tun.c file for it.
- By patch(1) command
  If you want to apply patch(1), put patch.openvpn-xxx.tun.c on the directory where you extracted source code of OpenVPN, and run patch(1) command like as below.
```
  $ patch -p1 < patch.openvpn-xxxx.tun.c

```
NOTE: Please download appropriate file which correspond to the version of OpenVPN.
Otherwise, you'll get an error while building a openvpn binary.

Bridge module

bridge.tar.gz (Last Update: 14 Dec 2009)
Source
After extracting bridge.tar.gz file, run './configure', 'make', and 'make install'. 'brdg' and brdgadm will be built and installed on your system.
Where 'brdg' is a STREAMS module which enables briging 2 interfaces. And where 'brdgadm' is a configuration command to add/delete bridge interfaces.
```
Usage: brdgadm [ -a interface | -d interface]
Options:
   -a interface   : Add interface as port
   -d interface   : Delete interface from port list
   -l             : List all interfaces in port list
```
See following sample configuration.
Network configuration

HostB is a router which is connected to 2 networks. By installing TAP and OpenVPN on HostB and HostC, I try to join HostC to Network1 through OpenVPN.
1. On HostB, install TAP driver and OpenVPN, and then configure it as bridging server using server-bridge option.
```
-------------
dev tap
proto tcp-server
server-bridge 10.0.0.90 255.0.0.0 10.0.0.10 10.0.0.30
client-to-client
ca /etc/openvpn/keys/ca.crt
cert /etc/openvpn/keys/u1.crt
key /etc/openvpn/keys/u1.key  # This file should be kept secret
dh /etc/openvpn/keys/dh1024.pem
--------------
```
  Then, run openvpn
2. On HostB, make and install bridge module.
  1. Extrace bridge.tar.gz
```
   # gunzip -c bridge.tar.gz | tar xvf -

```
  2. Make bridge moduel(brdg) and control command(brdgadm)
```
   # ./configure
   # make
   # make install

```
3. On HostB, setting up bridge.
```
   # /usr/local/bin/brdgadm -a tap0
   # /usr/local/bin/brdgadm -a hme1

```
  where hme1 is a network interface connected with Network1. As a result, tap0 and hme1 is bridged. At this time, ifconfig looks like as below.
```
  hme0: flags=1000843<UP,BROADCAST,RUNNING,MULTICAST,IPv4> mtu 1500 index 2
       inet 172.29.73.90 netmask ffffff00 broadcast 172.29.73.255
       ether 8:0:20:91:a6:90
  hme1: flags=1000843<UP,BROADCAST,RUNNING,MULTICAST,IPv4> mtu 1500 index 4
       inet 10.0.0.90 netmask ff000000 broadcast 10.255.255.255
        ether 8:0:20:91:a6:90
  tap0: flags=1000842<BROADCAST,RUNNING,MULTICAST,IPv4> mtu 1500 index 5
       inet 0.0.0.0 netmask 0
       ether a:0:20:14:32:52

```
4. On HostC, install TAP driver and openvpn, and configure it as a client.
```
------------
remote HostB
proto tcp-client
dev tap
client
persist-tun
ca /etc/openvpn/keys/ca.crt
cert /etc/openvpn/keys/onnv01.crt
key /etc/openvpn/keys/onnv01.key
-----------

```
  Then, run openvpn. At this time, ifconfig on HostC looks like as below.
```
   hme0: flags=1000843<UP,BROADCAST,RUNNING,MULTICAST,IPv4> mtu 1500 index 2
        inet 172.29.73.55 netmask ffffff00 broadcast 172.29.73.255
        ether 8:0:20:c6:69:c7
   tap0: flags=1000843<UP,BROADCAST,RUNNING,MULTICAST,IPv4> mtu 1500 index 4
        inet 10.0.0.10 netmask ff000000 broadcast 10.255.255.255
        ether a:0:20:53:71:52

```
Now, HostC joins Network1 via tap0 interface through openvpn.
But, please note that there's some limitation.. HostC can't communicate with HostB using a bridged IP address on HostB. I mean, ping 10.0.0.90 on HostC won't work.

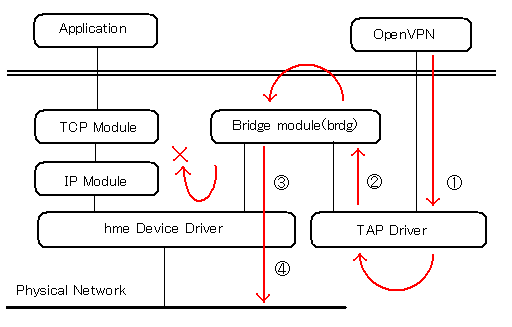

1. Ethernet packet from OpenVPN headed to HostB is passed to TAP driver.
2. TAP driver forwards packet to bridge module.
3. Bridge module forwards packet to hme driver as RAW data.
4. hme driver transfer the packet to the wire, but never forward it to IP module.
Of course, HostC can communicate with all the other hosts on Network1, but.. it can't communicate with bridged IP address of bridge server.
One more note. Once openvpn running on HostB is terminated, bridge setting will be invalidated. So, after executing 2nd openvpn on HostB, you need to re-setup the bridge again.
First, you need to drop existing settings.
```
   # /usr/local/bin/brdgadm -d hme1
   # /usr/local/bin/brdgadm -d tap0

```
Then, re-setup bridge.
```
   # /usr/local/bin/brdgadm -a hme1
   # /usr/local/bin/brdgadm -a tap0

```

tunctl command for Solaris

tunctl.tar.gz (Last Update: 24th Sep 2007)
Source
This is a Solaris version of tunctl command which was originally written by Jeff Dike.
The tunctl command enables administrator to preconfigure a TUN/TAP device. This command would be useful for testing, or for those who wants to use tun/tap interface just as a virtual interface.

After extracting tuncntl.tar.gz file, run './configure', 'make', and 'make install'.
By default, tunctl command is installed in /usr/local/bin

NOTE:
This Solaris version of tunctl command doesn't support the -u option, which enables administrator to specify an user who can use the interface.

Example)
Create tap0 interface
```
   # /usr/local/bin/tunctl -t tap0
   Set 'tap0' persistent
   #
```
Delete tap0 interface
```
   # /usr/local/bin/tunctl -d tap0
   #
```

Tested Solaris versioin

I've tested on following Solaris version and platform.

32 bit Solaris 9 on x86.
32 bit Solaris 9 on sparc.
64 bit Solaris 9 on sparc.
32 bit Solaris 10 on x86.
64 bit Solaris 10 on sparc.
64 bit Solaris 10 on x64 (*).
32 bit OpenSolaris snv_101b on x86.
64 bit OpenSolaris snv_101b on sparc.
64 bit OpenSolaris snv_101b on x64 (*).

(*) I've not done test, but some guys reported me that bridge module and tun/tap driver was able to be built and worked on x64 Solaris.

Change log

05/08/2006
- Modified tun_unitdata_req() to work on x86 Solaris 9
05/12/2006
- Added tun_generate_mac_addr() to generate MAC address for tap device.
10/09/2006
- Confirmed that the driver was able to work with OpenVPN 2.0.9.
  And also confirmed that tun.c file included in OpenVPN 2.0.9 has not been changed.
  So the above tun.c file can be compiled with OpenVPN 2.0.9 as well.
11/05/2006
- In tun_ioctl() of tap driver, reverted to original TUN/TAP driver's code which retrieves ppa from user program.
- In open_tun() of openvpn, changed it to use I_STR ioctl command to pass ppa to tap driver.
  This will allow openvpn to specify instance number using 'dev' option, like "dev tap7".
01/03/2007
- Added comments about bridge module.
02/21/2007
- Modified brdgadm.c file to make it to be able to handle e1000g.
- Modified brdgadm.c file to make it to be able to handle instance number
- Modified configure script of both bridge module and tun/tap driver to be able to build modules on x64 Solaris.
03/22/2007
- Removed unnecessary debug code from brdgadm.c.
06/25/2007
- Added "-mno-red-zone" compile option for amd64.
09/24/2007
- Modified Makefile.in for brdgadm command, so that it allows to specify installation directory by --prefix option of configure script.
12/07/2008
- Modified tun.c file of OpenVPN file to make it be able to be compiled with openvpn 2.1.
04/30/2009
- Modified Makefile.in and configure.in script to check whether ld is GNU ld or Solaris bundled ld command.
- Modified configure.in script to be able to build 32bit module on 64bit environment using --disable-64bit.
- Modified Makefile.in to be able to specify target directory using DESTDIR macro.
05/20/2009
- Modified configure.in and changed the way of checking GNU ld because latest OpenSolaris ld has --version option.
- Modified openvpn patch file(tun.c) and make openvpn commnad won't fail because of failure of I_POP ioctl command.
06/07/2009
- Modified configure.in, Makefile.in and make it be able to build using Sun Studio Compiler.(Tested on Sun Studio 12)
09/14/2009
- Added -xmodel=kernel option for Sun Studio compiler on amd64 platform.
  (Formerly loading the driver failed with relocation error)
11/16/2009
- Added ipv6 support to tun driver as required by OpenConnect VPN Client
11/18/2009
- Modified tun.c of OpenVPN 2.1_rc21 and set ipv6_explicitly_supported to true for Solaris.
12/14/2009
- Added -xmodel=kernel option to configure script of bridge module for Sun Studio compiler on amd64 platform.

I wrote this just for fun. Since this has not been tested well, please DON'T install this on production system. Use this at your own risk.
But your advice or comment would be appreciated.

---
Kazuyoshi <admin2@whiteboard.ne.jp>
